DuckTool: A Free Sidechain Ducking VST3 With Visual Control
Create cleaner kick and bass relationships, rhythmic pumping effects and precise volume ducking with a flexible visual workflow.
DuckTool by DsgDnB is a free sidechain ducking plugin designed to give producers detailed control over the way one sound moves out of the way of another.
Instead of relying only on a conventional compressor, DuckTool lets you visually shape the volume reduction envelope while monitoring the relationship between the processed signal and the sidechain source in real time.
That makes it particularly useful for kick and bass management in House, EDM, Techno, Drum & Bass and other electronic styles where precise low-end separation is essential.
A Visual Alternative to Traditional Sidechain Compression
Traditional sidechain compression works well, but the attack, release, threshold and ratio controls do not always make it obvious exactly how the volume envelope interacts with a kick drum.
DuckTool takes a more visual approach.

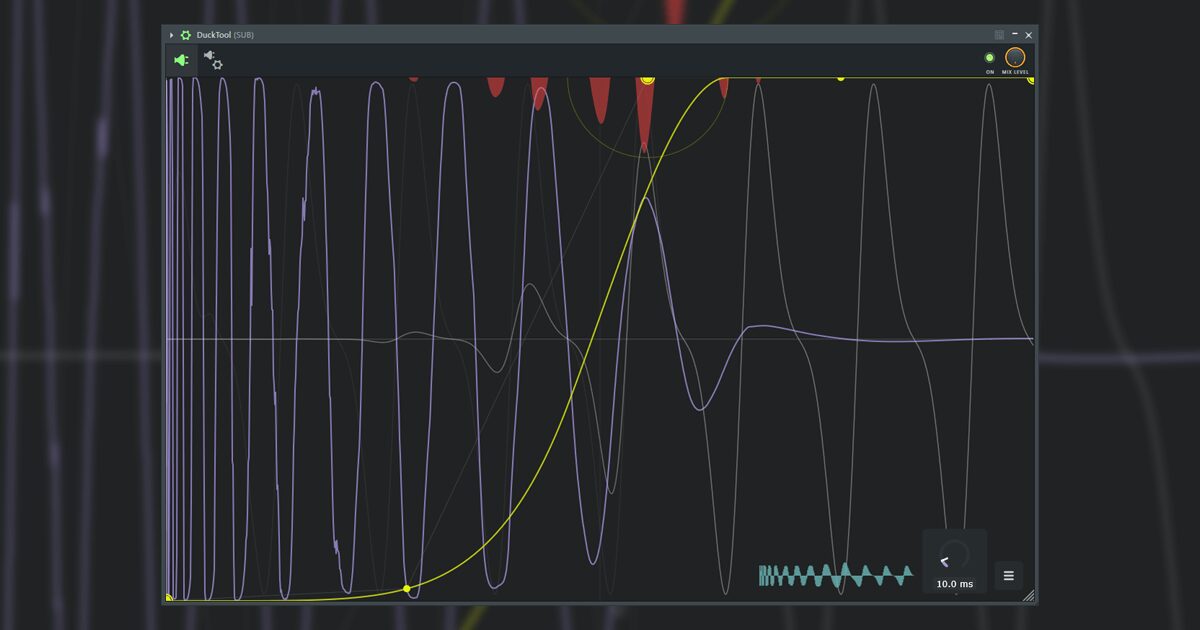

The plugin displays the incoming waveform and the ducking curve directly inside its interface. Producers can shape the envelope according to the transient and decay of the sidechain signal instead of adjusting a compressor blindly.
This is especially useful when a kick and bass overlap in the lowest part of the spectrum.
Flexible Envelope Shaping
DuckTool provides adjustable envelope tension and smoothness controls, allowing the volume reduction to react differently depending on the material.
A short envelope can create a transparent pocket around the transient of a kick, while a longer curve can produce the classic pumping movement associated with House and EDM production.
The visual interface makes it easier to judge exactly when the bass or another instrument returns to full volume.
Watch DuckTool in Action
The following demonstration shows how DuckTool can be used as a free sidechain solution inside a modern DAW.
Adaptive Pre-Ducking
DuckTool also includes adaptive pre-ducking, allowing the plugin to begin reducing the signal slightly ahead of the detected transient.
This can help create space for fast kick transients while reducing the clicks and phase-related artefacts that can appear when volume changes happen too abruptly.
The default latency is only 10 ms, keeping the plugin responsive while still providing room for its look-ahead processing.
Useful Beyond Kick and Bass
Although DuckTool is an obvious choice for low-end management, sidechain ducking can be useful throughout a mix.
- Duck bass underneath a kick
- Create rhythmic pumping on pads and synths
- Reduce instruments when a vocal is active
- Make space for snares or percussion
- Create exaggerated EDM-style volume movement
- Control overlapping rhythmic elements
Because the envelope is directly editable, DuckTool can function as both a corrective mixing utility and a creative rhythmic effect.
Advanced Detector Controls
Version 0.2.9 adds an Advanced section with additional control over detector threshold and sensitivity.
These parameters allow producers to fine-tune how DuckTool responds to the sidechain signal, which can be particularly useful when working with dynamic kick drums, percussion or more complex rhythmic material.
Still in Beta
DuckTool is currently distributed as a beta release. It is fully downloadable and usable, but producers should keep in mind that the developer is still evolving the software.
This is not a time-limited demo or a cut-down commercial edition. The plugin itself is offered free of charge.
DuckTool at a Glance
Developer: DsgDnB
Type: Sidechain ducking / volume shaping effect
Current version: 0.2.9 beta
Windows: VST3
macOS: VST3 / AU
Linux: VST3 / LV2
Visual feedback: Yes
Pre-ducking: Adaptive
Default latency: 10 ms
Price: Free
Download DuckTool for Free
DuckTool can be downloaded directly from the official DsgDnB website for Windows, macOS and Linux.
Final Thoughts
DuckTool offers a practical alternative to traditional sidechain compression for producers who prefer seeing exactly what is happening to their signal. Its editable envelope, real-time waveform display and adaptive pre-ducking make it especially useful for electronic music where precise kick and bass interaction matters. Despite its beta status, it is already an interesting free tool for producers who want faster and more visual control over ducking.
