Scyllascope is a free oscilloscope and audio analysis plugin developed by DsgDnB. Updated to version 1.3.0 in April 2026, it combines detailed waveform visualization, spectral information and a built-in recorder inside a scalable interface.
The plugin is available for Windows, macOS and Linux in VST3, AU and LV2 formats. It is useful for producers, mixing engineers and sound designers who want to inspect transients, phase relationships, clipping and low-frequency timing directly inside the DAW.
Main Features
- Real-time waveform display
- Sync, Free and Scroll visualization modes
- Spectral waveform coloring
- Smooth zoom and waveform navigation
- Headroom display with clipping indicator
- Multi-instance waveform overlay
- Sidechain signal visualization
- Built-in audio recorder
- Drag-and-drop audio export to the DAW
- Free VST3, AU and LV2 versions
More Than a Basic Oscilloscope
Scyllascope provides more information than a traditional waveform display. Its spectral mode uses different colors to represent frequency regions, making it easier to identify where the bass, midrange and higher-frequency content appear inside a transient.
The plugin can also display signals from several instances at the same time. This is particularly useful for comparing a kick with a bassline or checking how layered drum samples interact.
A Hold function freezes the waveform for comparison, while the adjustable zoom allows producers to inspect individual samples and very short transients in detail.
Best Uses
Kick and Bass Alignment
Place Scyllascope on the kick and bass channels, then use the instance overlay feature to compare both waveforms. This can reveal timing problems, phase cancellation and excessive overlap in the low end.
The visual information should support listening rather than replace it, but it can make difficult low-frequency problems much easier to understand.
Drum Transient Analysis
Scyllascope can show the attack length and shape of kicks, snares and percussion. Producers can use this information when layering samples or adjusting compressors, clippers and transient shapers.
If two drum sounds peak at different times, small timing adjustments may create a more focused combined transient.
Clipping and Headroom Checks
The headroom display and clipping indicator provide a quick way to identify excessive peaks. This is useful before and after saturation, compression or limiting.
It can also help confirm whether a limiter is controlling the signal cleanly or quietly turning the waveform into modern architecture.
Creative Resampling
The built-in recorder can capture audio directly from the plugin. Recorded material can be normalized, trimmed, snapped to the grid and dragged back into the DAW.
This makes Scyllascope useful for capturing short synth notes, drum hits, effect tails and processed loops without creating a separate recording track.
Production Tips
Compare related tracks: Use multiple instances to inspect kick and bass timing or compare layered drum samples.
Zoom into transients: Sample-level zoom can reveal clicks, timing offsets and very short peaks that are difficult to identify on the main DAW timeline.
Use the spectral display: Frequency-based waveform colors help distinguish sub-bass energy from midrange and high-frequency transients.
Record useful moments: Capture processed sounds and drag them directly into the arrangement for quick resampling.
Trust your ears first: A perfectly attractive waveform can still sound terrible. Audio production remains stubbornly inconvenient in that respect.
Compatibility
Scyllascope 1.3.0 is available for Windows, macOS and Linux. Windows users receive the VST3 version, macOS users can install VST3 or AU, and Linux users can choose VST3 or LV2.
The macOS builds are signed and notarized, and the interface supports scalable themes. The plugin also offers dedicated REAPER integration and a Sync to Start mode designed to address timing display issues related to plugin delay compensation in Ableton Live.

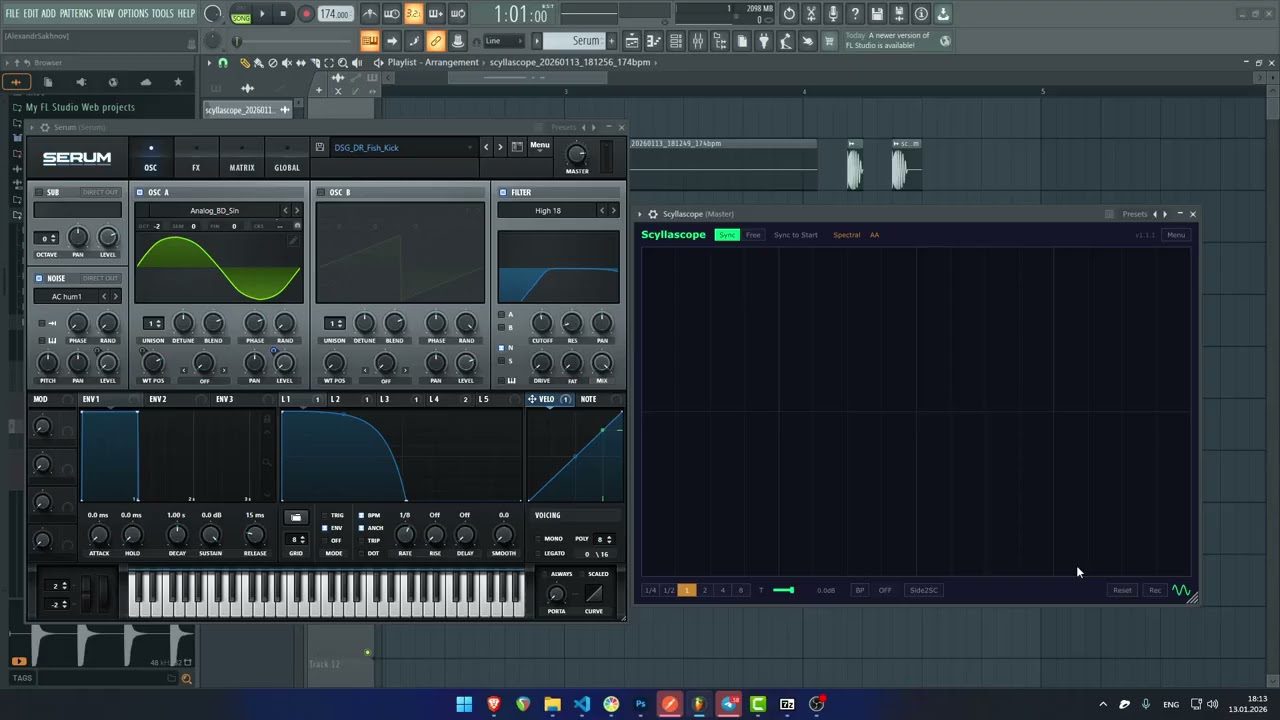

Official Video
Final Verdict
Scyllascope is a powerful free analysis plugin for producers who want more than a simple moving waveform. Its spectral display, multi-instance comparison, recorder and detailed zoom tools make it particularly useful for low-end alignment, transient analysis and creative resampling.
The plugin is visually detailed without becoming unnecessarily complicated, and its cross-platform support makes it accessible to most producers. It will not mix the track for you, but it may explain why the kick and bass have been arguing since bar seventeen.
Download Scyllascope from the official website:
https://dsgdnb.com/plugins/scyllascope
