The Hydra by bdEnergy is a free additive synth plugin built for producers and sound designers who want to construct timbre from individual harmonics rather than begin with a conventional saw, square or wavetable oscillator.
Created for the KVR Developer Challenge 2026, The Hydra is a monophonic synthesizer with seven independent partials, analog-modeled saturation, a non-linear Zero-Delay Feedback ladder filter, harmonic restructuring, stereo shaping and an XY performance system. Instead of starting with a harmonically rich waveform and filtering information away, it begins with a simple foundation and gradually builds the spectrum upward.
What Is The Hydra by bdEnergy?
The Hydra is a free monophonic additive synthesizer developed by bdEnergy. Its central sound engine uses seven independent partials, each representing a harmonic component of the note being played.
In traditional subtractive synthesis, a producer normally begins with a harmonically dense oscillator such as a sawtooth or square wave and removes frequencies with a filter. The Hydra approaches synthesis from the opposite direction. It begins with a simpler spectral foundation and introduces harmonic energy partial by partial.
This gives the instrument a distinctive programming workflow. Instead of asking how much of a waveform should be removed, the producer decides how much harmonic structure should exist in the first place.
Official KVR page: Visit The Hydra product page on KVR
Source code: View The Hydra on GitHub
Download: Download The Hydra from the KVR Developer Challenge 2026
Core Synthesis Concept
The Hydra is based on additive synthesis. Instead of relying on one complex waveform, the instrument generates several partials simultaneously and combines them into a larger timbre.
The seven partials begin with harmonic relationships based around multiples of the fundamental frequency. In a conventional harmonic series, these can correspond to ratios such as 1x, 2x, 3x and progressively higher multiples.
The Hydra then gives producers several ways to change how those partials are introduced, balanced, tuned and distributed across the stereo field.
This makes the harmonic structure itself a performance parameter. A patch can begin close to a simple fundamental and gradually expand into a much denser, wider and more complex sound.
Main Features
- Seven independent harmonic partials
- Monophonic synthesis engine with legato note behavior
- Harmonic Bloom control for progressively introducing partials
- Spatial Spread control for stereo positioning and waveshape development
- Multiple harmonic recipes
- Continuous or stepped harmonic transitions
- Harmonic Tilt for spectral balance
- Six inversion modes for restructuring harmonic relationships
- Three-band analog-style saturation architecture
- Always-on phase disperser
- 24 dB/octave Zero-Delay Feedback ladder filter
- Resonance capable of self-oscillation
- Post-filter Overload saturation
- Additional high-pass filter
- Independent volume and filter ADSR envelopes
- Envelope Warp control
- Glide and keyboard tracking
- XY performance pad
- Real-time oscilloscope display
- 4x internal oversampling
Seven Independent Partials
At the center of The Hydra are seven oscillator partials. Each partial occupies its own position inside the harmonic structure of the patch.
This is important because the instrument does not simply stack seven identical oscillators. Each partial can contribute a different frequency relationship, waveshape character, stereo position and timing offset.
The result is a sound engine where harmonic complexity can develop gradually. A patch may begin with a strong fundamental and then introduce additional overtones as the Harmonic Bloom control is increased.
This approach is useful for producers who want to understand why a sound becomes brighter, wider or more metallic. The additional complexity does not arrive from a mysterious preset layer. It comes from specific harmonic components becoming part of the spectrum.
Harmonic Bloom
Harmonic Bloom is one of the most important controls in The Hydra. It determines how the upper partials emerge into the sound.
At low settings, the patch remains focused around the fundamental. As the control increases, additional partials become active progressively.
The system is designed to redistribute energy rather than simply make the patch louder every time another harmonic appears. This allows the timbre to become more complex without behaving like a basic gain control.
For sound design, this makes Harmonic Bloom useful as an automation target. A bass can begin relatively pure and gradually become more aggressive. A lead can expand during a transition. A sustained drone can reveal additional harmonic detail over several bars.
Spatial Spread and Waveshape Movement
The Spatial Spread dimension controls more than simple stereo panning. As the upper partials become active, they can move to different locations across the stereo field while also developing different waveshape characteristics.
This creates width from the internal harmonic structure rather than applying a conventional stereo widening effect after the synthesizer.
At restrained settings, the sound can remain focused and relatively centered. Higher settings create a broader image with increased harmonic character at the edges of the stereo field.
This is particularly useful for monophonic leads and sustained textures. One played note can generate a surprisingly large stereo image while remaining part of one integrated synth voice.
Multiple Harmonic Recipes
The Harmony control changes the frequency relationships between the seven partials. Instead of keeping every patch locked to one natural overtone series, The Hydra can move between several different harmonic structures.
The documented harmonic recipes include conventional overtone relationships, wider octave-focused structures, compressed harmonic clusters, odd-harmonic spectra and more metallic bell-style relationships.
Transitions between these structures can also create useful sounds. The most interesting position is not always one of the fixed endpoints. Intermediate settings can produce unusual frequency relationships that sit between familiar harmonic systems.
A stepped mode is available for producers who want more reproducible positions, while continuous movement is better suited to automation and evolving sound design.
Harmonic Tilt
Harmonic Tilt changes the balance between lower and upper partials while attempting to preserve the overall energy of the sound.
Moving the control toward the lower harmonics creates a darker, more fundamental-focused result. Moving toward the upper spectrum brings more harmonic information forward.
This is more than a conventional tone control because it changes the internal balance of the additive engine itself.
For bass sounds, a darker tilt can keep the fundamental dominant. For metallic or more aggressive leads, increasing upper harmonic presence can help the patch become more detailed and cutting.
Harmonic Inversion Modes
The Hydra includes several inversion modes that reorganize the relationship between the seven partial positions and their harmonic assignments.
This can transform a patch dramatically without changing the rest of the programming. The same envelope, filter and spatial settings can produce a different tonal identity simply by restructuring the harmonic arrangement.
Available approaches include the default linear structure, shuffled harmonic relationships, prime-focused arrangements, reversed undertone-style behavior, octave-focused structures and more inharmonic bell-like configurations.
These modes are particularly useful when a patch has the correct movement and envelope but the harmonic character is not yet right. Instead of starting again, change the inversion and explore a different spectral architecture.
Three-Band Harmonic Saturation
Before reaching the main filter, The Hydra processes different regions of the harmonic engine through different saturation behaviors.
The lower partials receive a softer form of clipping intended to support body and weight. Midrange partials use a smoother saturation response, while the highest harmonics receive a more aggressive limiting character.
This means harmonic density is not processed uniformly. The lower, middle and upper parts of the spectrum develop different types of distortion.
The practical result is a more complex form of saturation than placing one distortion effect across the complete output. Low harmonics can remain weighty while higher partials gain additional edge.
Phase Disperser
The signal also passes through a phase disperser before the main ladder filter. This processing changes timing relationships between frequencies without acting like a conventional EQ.
The goal is to introduce depth and dimensional character while keeping the left and right channels compatible with mono playback.
Phase-based processing can often become dangerous when used carelessly on stereo material. In The Hydra, the disperser is part of the internal signal architecture rather than a random widening trick added at the end of the chain.
Zero-Delay Feedback Ladder Filter
The main filter is a four-pole low-pass ladder design with a 24 dB per octave slope. It uses a Zero-Delay Feedback implementation intended to create a more immediate non-linear response than a simple digital filter structure.
The ladder filter is one of the main bridges between The Hydra’s additive engine and more familiar subtractive synthesis.
After building a detailed harmonic structure, producers can still shape the result through cutoff and resonance. This combination of additive construction followed by subtractive filtering creates a large amount of tonal flexibility.
The filter can be used gently to soften upper harmonics or pushed into much more unstable territory with higher resonance values.
Resonance and Self-Oscillation
At moderate settings, resonance emphasizes frequencies around the filter cutoff and adds character to sweeps.
At more extreme settings, The Hydra’s ladder filter can enter self-oscillation territory and begin generating additional pitched behavior.
This transforms the filter from a passive tone-shaping stage into another potential sound source.
Combined with the additive oscillator engine, strong resonance can create unstable harmonic interactions, whistles, resonant drones and aggressive electronic textures.
This is one of the areas where sensible gain management becomes important. Free plugins may cost nothing, but loud resonant peaks can still invoice your ears.
Overload Saturation
Overload is a post-filter saturation stage. At lower settings, it can add density and warmth. At stronger settings, it compresses and distorts the filter output more aggressively.
Because Overload comes after the ladder filter, it also affects resonant peaks and self-oscillating behavior.
This creates a useful relationship between resonance and distortion. The filter can generate movement and tonal instability, while Overload pushes that material into denser harmonic territory.
For aggressive basses and experimental leads, the combination can become one of the most characterful parts of the instrument.
Additional High-Pass Filter
A dedicated high-pass filter is included after the main ladder stage. Its purpose is to remove unnecessary sub-bass buildup and clean the lower part of the spectrum.
This becomes particularly useful when using heavy resonance, wide harmonic structures or saturation.
A sound can be impressive in isolation while quietly creating a small geological event below 30 Hz. The high-pass filter provides a direct way to control that unnecessary energy before it reaches the rest of the mix.
Volume and Filter Envelopes
The Hydra includes independent ADSR envelopes for volume and filter movement.
The amplitude envelope controls the overall evolution of the note, allowing the instrument to create short plucks, basses, sustained leads and slower atmospheric sounds.
The filter envelope controls movement of the ladder cutoff and can be applied positively or negatively. Positive values create more conventional opening filter sweeps, while negative modulation allows the filter direction to be inverted.
This familiar envelope structure helps keep the instrument practical. The harmonic engine may be unusual, but producers can still shape articulation using controls they already understand.
Envelope Warp
Envelope Warp introduces a more unusual approach to time and harmonic development.
Rather than changing only the global envelope timing, it can stagger how the individual partials appear during the attack phase.
At one extreme, lower harmonics can arrive first before the upper spectrum gradually blooms into the note. In the opposite direction, higher harmonic information can appear before the fundamental becomes fully established.
This can create evolving attacks that would normally require several layered synthesizers or more complex modulation routing.
For pads and cinematic textures, slower settings can make a note feel as though its spectral identity is unfolding over time.
Glide and Monophonic Performance
The Hydra is a monophonic synthesizer. It is therefore especially suited to basses, leads, melodic sequences and single-note sound design.
A glide control provides portamento between notes, supporting smooth transitions and more expressive legato playing.
For electronic basslines, restrained glide can introduce movement without turning every note into an exaggerated slide. For leads and experimental sequences, longer values can create more dramatic transitions.
The monophonic architecture also encourages focused sound design. Instead of building large chords internally, the instrument concentrates all of its harmonic complexity into one played note at a time.

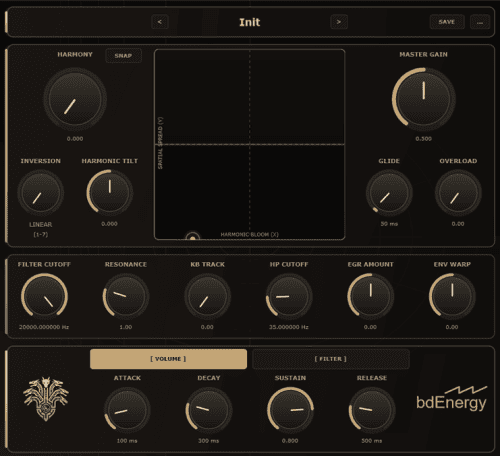

XY Performance Pad
The large central XY pad provides direct access to two of the most important dimensions of the synth: harmonic development and spatial spread.
Horizontal movement controls the progression of the harmonic structure, while vertical movement changes the spatial and waveshape characteristics of the upper partials.
This allows two important parts of the sound engine to be performed simultaneously with one gesture.
The XY movement can also become useful for automation. Rather than drawing separate automation curves for several controls, producers can record one continuous gesture that changes the harmonic density and stereo character together.
A live oscilloscope provides visual feedback while the sound changes.
4x Oversampling
The Hydra processes its internal engine with 4x oversampling. This is particularly relevant because the instrument includes several non-linear stages, including saturation and a driven ladder filter.
Oversampling increases the internal processing rate before the signal is returned to the project sample rate. Its purpose here is to reduce unwanted aliasing from harmonic generation and distortion.
This does not mean every patch will automatically become gentle or clean. The Hydra is perfectly capable of producing aggressive tones. The goal is to keep the aggression intentional rather than adding unnecessary digital artifacts around it.
Factory Presets and Programming Philosophy
The factory preset bank is intentionally limited compared with synthesizers built around hundreds or thousands of ready-made sounds.
The Hydra is designed more as a programming environment than a preset browser. Its main value comes from exploring the harmonic engine, moving the XY pad and discovering combinations between partial structure, filtering, saturation and envelopes.
This approach will appeal most to producers who enjoy creating sounds from scratch. Producers looking only for a giant collection of polished presets may find the instrument more demanding.
For sound designers, however, the relatively focused interface makes experimentation part of the instrument rather than an optional advanced feature hidden several menus deep.
Sound and Creative Direction
The Hydra naturally suits electronic and experimental production. Its harmonic engine can create focused basses, wide monophonic leads, metallic tones, resonant sequences, evolving drones and abstract textures.
At simpler settings, the synth can remain relatively clean and fundamental-focused. Increasing Harmonic Bloom, Spatial Spread and upper harmonic energy creates a progressively denser sound.
The bell-style and inharmonic relationships are useful for metallic percussion, cinematic sound effects and unusual lead timbres.
Strong resonance and Overload can push the instrument toward more aggressive techno, industrial and experimental territory.
Longer envelopes and slower harmonic development can produce evolving textures for ambient and cinematic music.
Compatibility and Technical Information
The Hydra is available for Windows and macOS. KVR lists the instrument in VST3 and Audio Unit formats, while the developer’s current GitHub technical documentation explicitly describes VST3 builds for Windows and macOS.
- Plugin type: monophonic additive synthesizer
- Version: 1.0.0
- Platforms: Windows and macOS
- Formats listed by KVR: VST3 and Audio Unit
- VST3 documented by developer: Windows and macOS
- Polyphony: one monophonic voice with legato note handling
- Internal processing: 4x oversampling
- Preset format: .hydra
- Copy protection: none
- Open source license: GPL 3
Who Should Use The Hydra?
The Hydra is best suited to producers who enjoy synthesis itself and want more control over harmonic structure than a conventional oscillator selector usually provides.
- Electronic producers creating original basses and leads
- Techno producers looking for resonant and evolving monophonic sounds
- Experimental musicians exploring additive synthesis
- Sound designers creating metallic and inharmonic textures
- Ambient producers building slowly evolving tones
- Cinematic composers creating futuristic electronic layers
- Game audio designers needing unusual synthetic material
- Open-source audio enthusiasts
- Producers interested in learning harmonic sound construction
Creative Applications
For bass sounds, begin with moderate Harmonic Bloom and keep the Harmonic Tilt focused toward the lower spectrum. Add a small amount of Spatial Spread and use the ladder filter to control upper harmonics.
For monophonic leads, increase the harmonic structure and use glide for expressive transitions between notes. Automate the XY pad during longer phrases to change width and brightness dynamically.
For metallic sounds, explore the bell-style harmonic recipe and more extreme inversion settings. Combine this with resonance and shorter envelopes for synthetic percussion and unusual plucks.
For ambient textures, use slower amplitude and filter attacks. Allow the harmonic structure to unfold gradually and keep Overload restrained unless additional density is required.
For techno sequences, automate cutoff, resonance, Harmonic Bloom and the XY pad. A relatively simple MIDI pattern can become much more dynamic when the spectrum changes across the arrangement.
For cinematic sound design, push the instrument away from conventional harmonic relationships. Inharmonic structures, slow Envelope Warp and strong resonant filtering can create tension layers, drones and futuristic effects.
Open Source and GPL 3 License
The Hydra is free and open source. The KVR product page lists the software under the GPL 3 license and indicates that no copy protection is used.
The source code is publicly available through the developer’s GitHub repository. This allows technically inclined users to inspect the project and understand how the instrument is built.
For ordinary music production, the important point is simpler: the plugin can be downloaded and used without a commercial plugin purchase or copy-protection system.
The open-source license applies to the software source code and redistribution conditions for the software itself. Producers should distinguish this from copyright ownership of musical compositions created with the instrument.
Download Details
The Hydra is available as part of the KVR Developer Challenge 2026. KVR provides downloads for Windows and macOS through the challenge page and product database.
KVR product page: https://www.kvraudio.com/product/the-hydra-by-bdenergy
KVR Developer Challenge 2026: Download The Hydra from KVR
GitHub repository: https://github.com/mchandler-CPT/Hydra
Production Tips
Start with the harmonic engine before adding heavy filtering. The main point of The Hydra is understanding how the partial structure changes the sound.
Use Harmonic Bloom gradually. Moving directly to maximum can hide the more interesting intermediate positions where only part of the harmonic structure is active.
Keep bass patches relatively controlled in stereo. The Spatial Spread system can create a large image, but low-frequency material still needs to work in mono and fit the rest of the mix.
Use the high-pass filter after extreme resonance and saturation. Experimental sound design can create significant low-frequency buildup even when the patch does not immediately sound bass-heavy.
Automate the XY pad. The relationship between harmonic complexity and stereo development is one of the most distinctive performance features of the instrument.
Save variations often. Changing one harmonic recipe, inversion mode or XY position can produce a completely different result from the same basic patch.
Watch output level around self-oscillation and Overload settings. Interesting sound design should surprise the listener, not the limiter, the speakers and three neighboring apartments simultaneously.
Additive Synthesis in Modern Music Production
Additive synthesis is one of the fundamental methods of creating complex sound, but many modern producers encounter it less frequently than subtractive, wavetable or sample-based synthesis.
The Hydra makes the concept more approachable by concentrating the experience around seven partials rather than presenting hundreds of individual sine-wave controls.
This gives producers enough harmonic control to understand the method while keeping the interface suitable for practical music production.
The instrument also demonstrates that additive and subtractive synthesis do not need to exist separately. The harmonic engine builds the spectrum, then saturation and a ladder filter reshape it.
This hybrid workflow gives The Hydra a distinctive identity in the growing world of free synth plugins.
Final Verdict
The Hydra by bdEnergy is an original free additive synth VST plugin for producers who want to build sound from harmonic components rather than begin with conventional oscillator shapes.
Its seven-partial architecture, Harmonic Bloom system, spatial harmonic processing, multiple frequency recipes, inversion modes, three-band saturation, Zero-Delay Feedback ladder filter and XY performance control create a focused but unusually deep sound design environment.
The instrument is monophonic, so it is particularly suited to basses, leads, sequences, drones and experimental sound design rather than large polyphonic chord patches.
Its strongest quality is that the synthesis process itself becomes playable. Harmonic structure is not hidden behind a finished preset. Producers can hear the spectrum emerge, change its relationships, spread it across the stereo field and then reshape it through filtering and saturation.
For producers looking for a free additive synth plugin, an experimental VST instrument or an open-source synthesizer for harmonic sound design, The Hydra is one of the more distinctive new free releases from the KVR Developer Challenge 2026.
